HVAC Drier

Receiver Drier — HVAC Cooling Circuit – Series 2.X

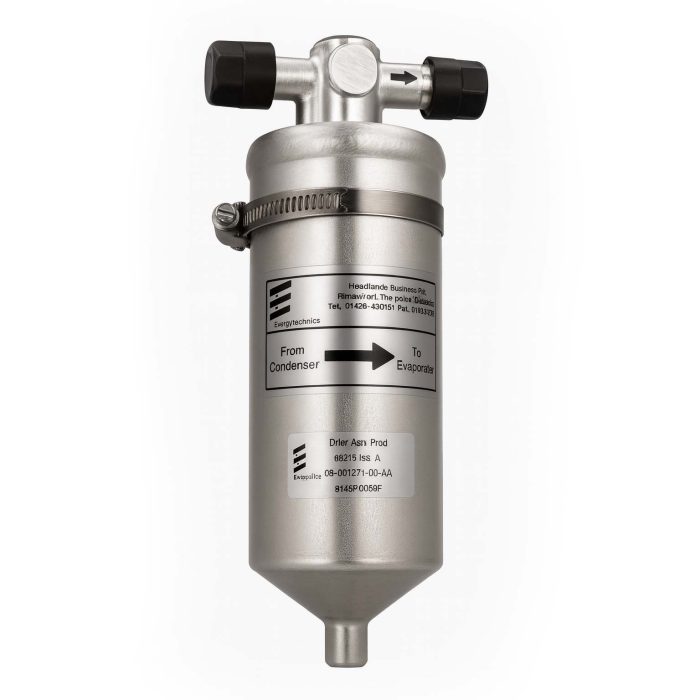

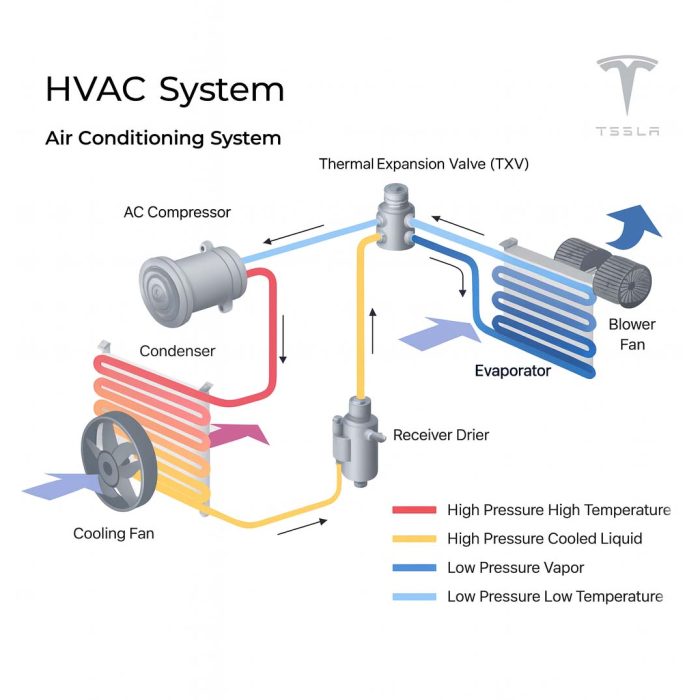

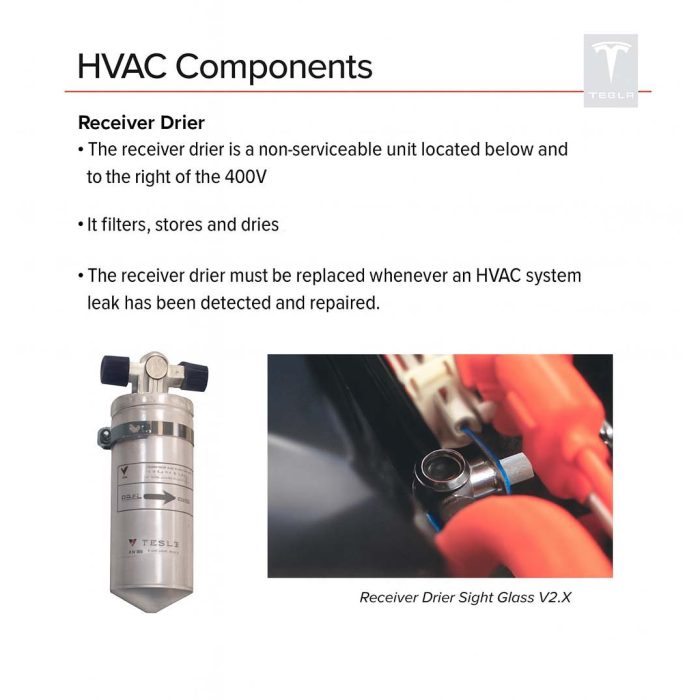

This receiver drier assembly is the non-serviceable canister mounted in the high-pressure A/C line below and to the right of the 400 V controller. It filters, stores, and dries the refrigerant charge after the condenser, and its built-in sight glass helps diagnose charge and flow issues.

Why these fail

• Moisture after a leak — Once the system has been open, the desiccant becomes saturated and can no longer protect the compressor and TXV.
• Debris contamination — Compressor wear or hose breakdown loads the drier with particles, restricting flow.
• Age and corrosion — Years of heat cycling can corrode the shell and fittings, risking leaks at the crimp or ports.
• Improper re-use — Re-using an old drier after major A/C repairs invites repeat failures and poor cooling performance.

Our solution

• Correct Tesla-specific receiver drier for Roadster V2.X HVAC layout, with integrated sight glass.
• Clean, dry, sealed unit — stored capped to keep moisture out until installation.
• Direct-fit ports and brackets — no cutting or adapting of lines on the vehicle.
• Optional seal kit — fresh O-rings and hardware available to complete the repair properly.

Service & coverage

Sold as a single receiver drier assembly. Professional A/C service is recommended, including evacuation, vacuum hold test, and precise recharge by weight. Check local regulations for handling and recovery of refrigerant before opening the system.

Need help confirming the correct Receiver Drier?
Have your VIN and Roadster version (1.5 or 2.x) ready and contact Gruber Motor Company at 623-433-8500 for application support and current exchange / send-in options.
