Tesla Suspension — Model S / Model X — Rear Suspension Control Arm Hardware Kit (36-Piece) — Model S 2012–Jan 2021 • Model X 2015–Feb 2021
Model S 2012–Jan 2021 • Model X 2015–Feb 2021
Rear Suspension • Hardware Kit
Free Shipping (Continental US)
International Delivery Available
A comprehensive 36-piece rear control arm hardware kit for Tesla Model S and Model X.
It includes the fasteners typically replaced when servicing rear upper/lower control arms, toe links, and trailing links.
Direct-fit hardware, packaged for a clean, professional install.
- Comprehensive 36-piece kit for rear suspension service.
- Fits Tesla Model S (2012–Jan 2021) and Model X (2015–Feb 2021).
- Free Shipping to the Continental US.
- International delivery available.

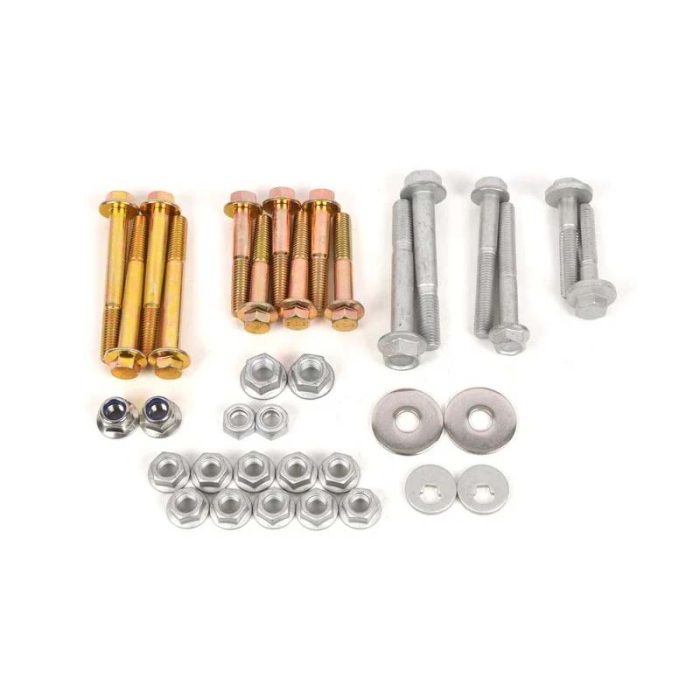

Kit Contents — 36 Pieces (Representative)
| OE# Reference |
Description |
Qty |
| — |
M14 camber (eccentric) bolts |
4 |
| — |
Eccentric camber washers, M14 (large) |
4 |
| — |
Eccentric camber washers, M14 (small) |
4 |
| — |
Hex nuts, M14 |
4 |
| — |
Control arm / toe link bolts, M12 |
4 |
| — |
Hex nuts, M12 |
4 |
| — |
Control arm bolts, M10 |
4 |
| — |
Hex nuts, M10 |
4 |
| — |
Flat washers, M12/M10 mixed |
4 |
Representative breakdown shown; exact bolt lengths/washer diameters may vary by VIN and arm supplier. Total piece count remains 36.
Compatibility & Fitment
| Vehicles |
Model S (2012–Jan 2021) — RWD & AWD
Model X (2015–Feb 2021) — AWD |
| Position |
Rear suspension — upper/lower control arms, toe links, trailing links |
| Notes |
Always perform a 4-wheel alignment after installation. Torque bushing pivots at ride height to prevent bushing wind-up. |
Installation Notes
- Replace single-use fasteners to maintain clamp load and safety.
- Match eccentric washer orientation to alignment marks prior to teardown.
- Final-torque with the suspension loaded at ride height; then set alignment to factory specs.
Why buy from Gruber
- Exact-fit, matched sets — Fasteners chosen for Tesla rear suspension service.
- Fresh inventory — New hardware ensures reliable torque retention.
- Tesla-savvy support — Phoenix-based team with deep Model S/X experience.
