REAR Air Suspension — Tesla Model S – Air Strut Assembly (RWD/AWD, w/o ADS) — 2012–2016
Model S (2012–2016, to 03/2016 build) • Rear (LH/RH) • RWD/AWD • w/o ADS
Sold individually • Qty required per vehicle: 2

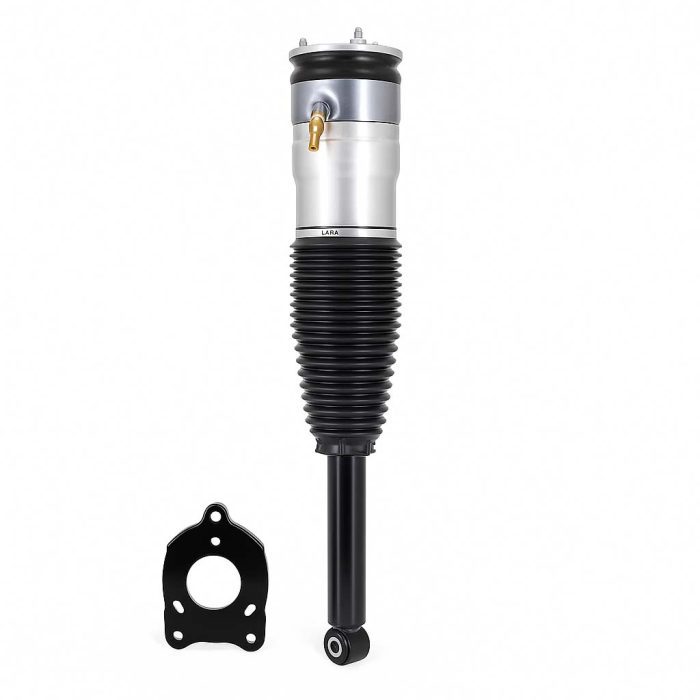

OE-style Air Suspension Strut Assembly for Tesla Model S rear axle. Direct-fit replacement for non-adaptive (no ADS) cars, left or right side. Restores proper ride-height control, damping, and air-spring sealing. After replacement, we place the vehicle on our Hunter Alignment Rack and dial in the OE spec’s ride height.
Why these fail
Air bladder micro-cracks/dry-rot causing slow leaks and compressor over-cycling.
Internal damper wear (loss of gas charge/oil) leading to floaty or harsh ride.
Upper mount rubber separation or lower bushing wear causing clunks over bumps.
Corroded crimp rings or fittings creating intermittent air loss.
Long-term heat/UV and high-mileage fatigue on rubber components.
Our solution
New air sleeve, seals, and OE-style crimp for airtight performance.
Direct bolt-in for LH/RH rear positions; no core required.
Pair replacement recommended (both rears) to maintain balance.
After install: verify ride-height and perform alignment.
At-a-Glance Specs
Vehicle Fit
Tesla Model S 2012–2016 (to 03/2016 build) • RWD/AWD • Excludes ADS (non-adaptive)
Position
Rear • Left or Right (interchangeable)
Compressed Length
23.03 in
Extended Length
30.12 in
Stroke Length
7.09 in
Weight (each)
~18.31 lb (gross, incl. packaging)
Quantity Required
2 (one per rear corner)
Core Charge
N/A
Service & Coverage
Maintenance Tip: Replacement of these air struts requires a nitrogen recharge. After strut replacement, we clear suspension faults, leak-test the air system, and perform an alignment to prevent edge tire wear.
Tech support: Need fitment help or install guidance? Call our team – 623-433-8500, or email ev@gruberpower.com.
